Q235 Steel Scaffolding Fasteners For Construction Scenarios

Name: Q235 Steel Scaffolding Fasteners For Construction Scenarios
Brand: Shunyao Supply Chain
Price: 5 USD

Buy cheap Q235 Steel Scaffolding Fasteners For Construction Scenarios product

MOQ : 100 PCS

Payment Terms : T/T in advance

Place of Origin : Chengdu , China

Brand Name : Shunyao Supply Chain

Packaging Details : Bundles

Delivery Time : 5-15 days

Supply Ability : Excellent

Price : $5-15

Color : Silver (natural galvanized finish)

Installationmethod : Bolt and nut tightening

Application : Connecting scaffolding tubes

Corrosionresistance : High

Reusability : Reusable

Material : Steel

Productname : Scaffolding fastener

Contact Now

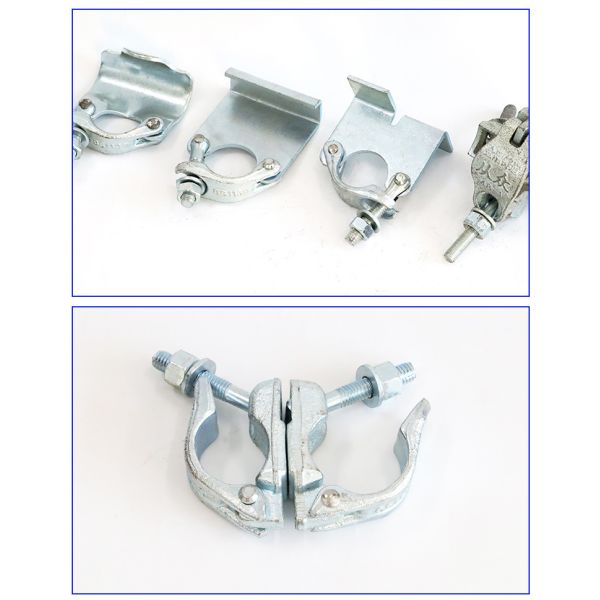

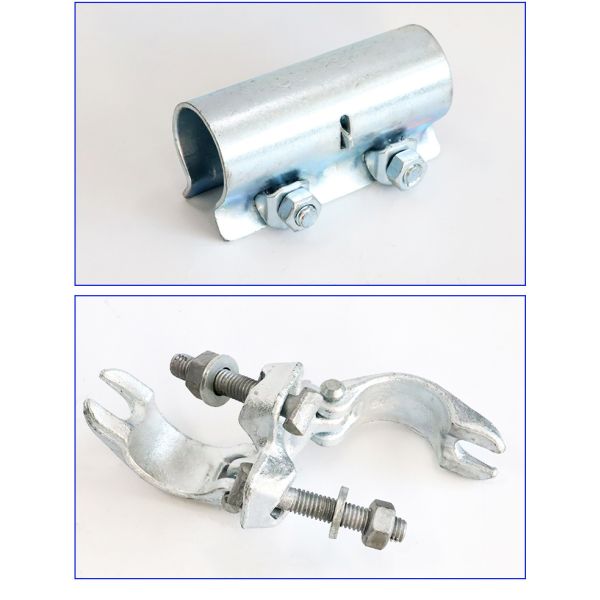

Also known as steel pipe clamps or scaffolding connectors, scaffolding couplers mainly include three types: Right Angle Couplers, Swivel Couplers, and Sleeve Couplers. They are core components for joining vertical poles, horizontal tubes, and diagonal braces in construction, widely applied in housing construction, bridge engineering, tunnel construction, stage erection, etc. Compatible with φ48.3mm (internationally universal) and φ50mm standard steel pipes, they provide stable support for all types of scaffolding systems.

Designed for quick assembly and disassembly, it saves time and labor. High reuse rate significantly reduces construction costs. Customization is available—material, size, surface treatment,

and color (standard black/silver gray, customizable blue/red, etc.) can be adjusted to meet specifications of different countries and regions. Equipped with a patented anti-loosening structure,

it further enhances construction safety.

The mainstream material is QT450-10 ductile iron (GB standard), with Q235 stamped steel plate and cast steel as alternatives. It has tensile strength ≥450MPa and elongation ≥10%,
featuring high toughness, strong impact resistance, and fracture resistance. The surface is treated with hot-dip galvanizing, electro-galvanizing, or anti-rust painting,
enabling stable use for over 5 years in humid or saline-alkali environments.

			Material
			Steel, Wood
			Application
			concrete formwork, Office

			Building, formwork panel, tall...

			Feature
			High Strength, Easily

			Assembled, Reusable
			Warranty
			2 Years

			Design Style
			Traditional
			After-sale Service
			Online Technical Support,

			Onsite Installation

			Project Solution

			Capability
			3D model design, graphic

			design
			Place of Origin
			Chengdu, China

			Brand Name
			Shunyao supply chain steel frame
			Application
			Building Construction

			Color
			Customer Requirements
			Size
			Customers

			Function
			Construction Concrete

			Support
			Surface treatment
			Printed

			Performance
			High Strength Scaffolding System
