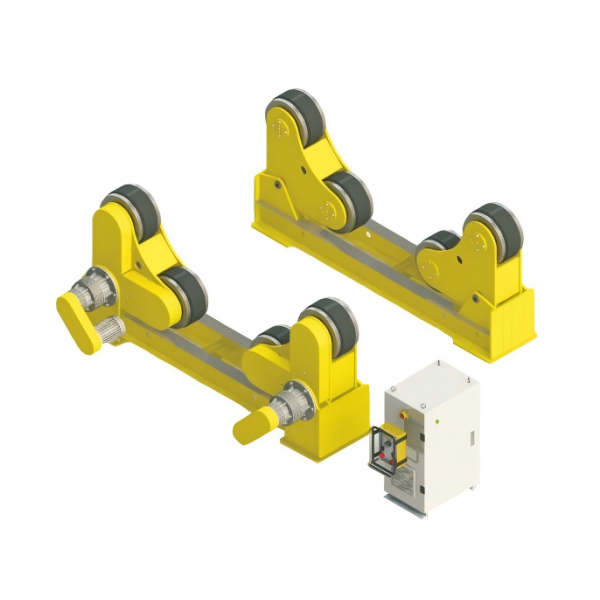

Heavy-Duty ZT Self-Adjusting Welding Roller Bed with Stepless Speed Control and Industrial Durability

When dealing with high-volume vessel fabrication and constantly switching between tanks of different sizes, stopping to unbolt and manually adjust roller beds kills production time. The ZT Self-Adjusting Welding Roller Bed is engineered to eliminate this downtime.

Unlike standard bolted models, the ZT series features an intelligent pivoting frame that automatically opens or closes to perfectly cradle the workpiece as soon as you lower the tank onto it—no manual adjustment needed as long as the tank falls within the provided diameter range. It is the ultimate plug-and-play turning roll system for efficient workshop floors.

• Zero Manual Adjustment: Instantly adapts to various workpiece diameters, saving operators massive amounts of setup time and keeping cranes moving.
• Stepless Speed Control: Driven by an industrial frequency inverter, delivering perfectly smooth, stepless rotation to guarantee a consistent weld pool.
• Automation Ready: The control box comes standard with reserved linkage interfaces. You can easily plug this unit into a Column and Boom (Manipulator) system to create a fully synchronized automatic welding center.
• Industrial Durability: All critical electrical components are housed with IP45 insulation, protecting the system from heavy workshop dust and metallic grinding debris.

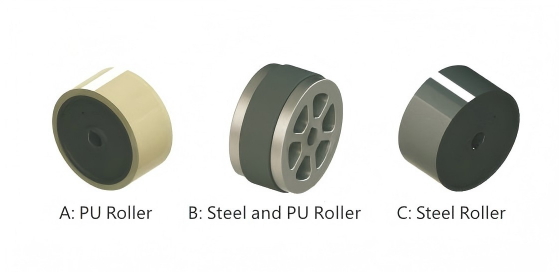

Because different tanks require different grips and weight capacities, Sichuan Shunyao offers three specific roller materials to match your fabrication needs:

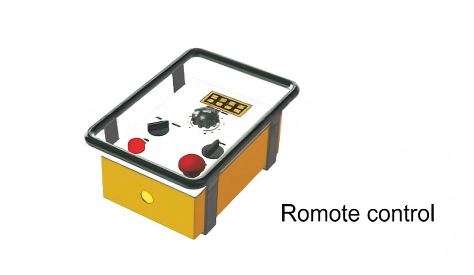

Your operators have full control right at the welding joint. The standard package includes a heavy-duty remote control (10 m cable) featuring:

• Digital line speed display screen
• Roller speed adjusting knob
• Forward / Reverse direction toggles
• System Start, Stop, and Emergency Stop buttons

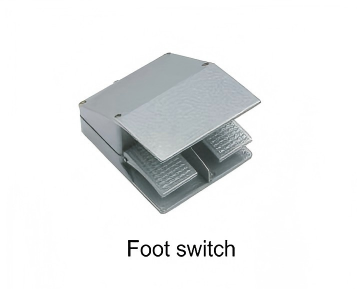

• Double Foot Switch: Allows the welder to start and stop the roller rotation hands-free. (Note: Direction and speed regulation are still locked in at the main remote).

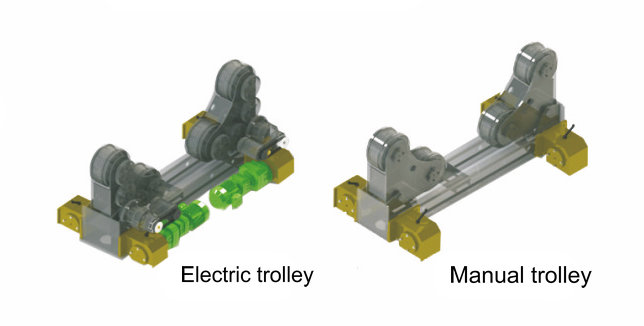

• Track Trolleys (Manual or Electric): Need to handle extra-long pipes or vessels? We supply manual or fully motorized trolleys to move the roller beds along your shop rails. The electric trolley system outfits the power frame with a drive motor and the idler frame with an idler trolley, utilizing stepless speed adjustment with a smooth walking speed of 350 - 3500 mm/min.
